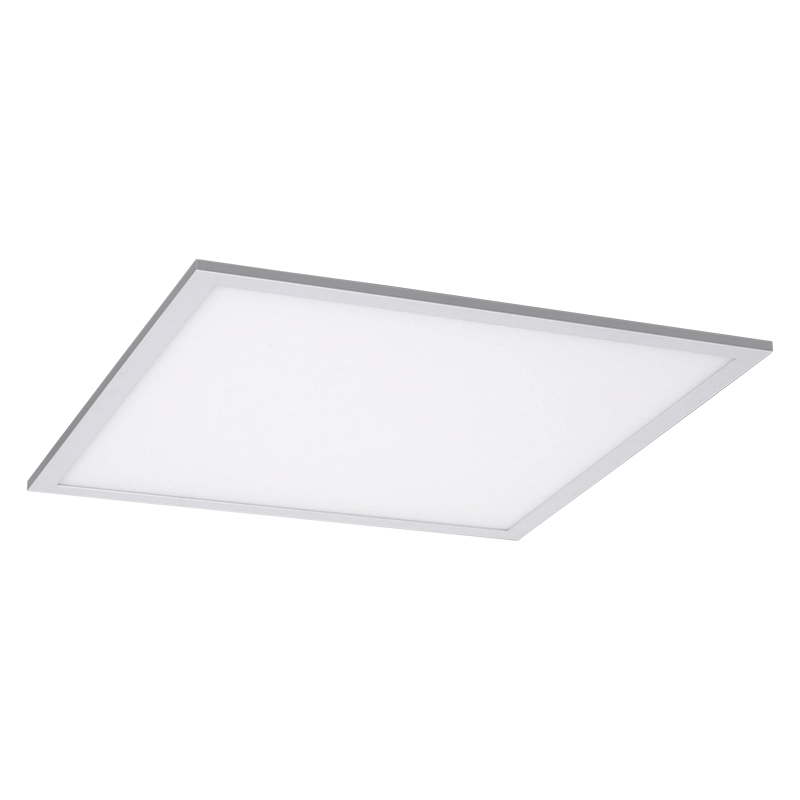

4 Step Dimming LED Panel Light

MK-PN060060-SD040-01 (450mm×450mm)
Feature

Design for residential / commercial lighting and indoor use

On/Off wall switch

Wattage: 24Watt

Dimming: 100%6500K-100%3000K-20%3000K-20%6500K

Color temperature: CCT 3000K+6500K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 1600~1800lm

Luminous flux efficacy: 67~75lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 4014 LED

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9


Properties

Dimensions: 450mm × 450mm × 53mmH

Luminaire material: 6063 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C

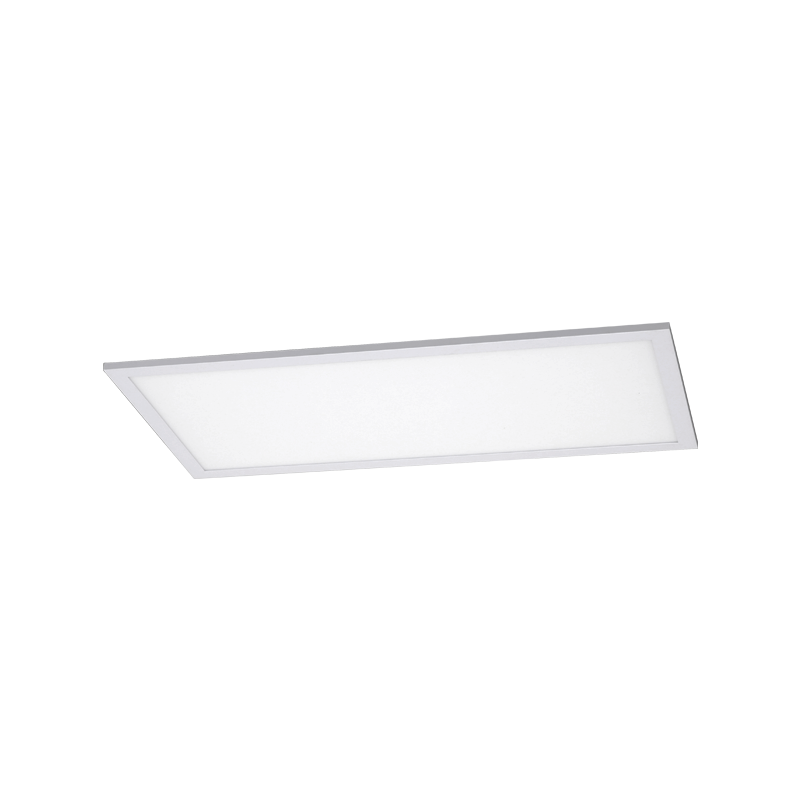

MK-PN030060-RD024-03 (295mm×595mm)
Feature

Design for residential / commercial lighting and indoor use

On/Off wall switch

Wattage: 24Watt

Dimming: 100%6500K-100%3000K-20%3000K-20%6500K

Color temperature: CCT 3000K+6500K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 1500~1700lm

Luminous flux efficacy: 63~71lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 4014 LED

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9




Properties

Dimensions: 295mm × 595mm × 53mmH

Luminaire material: 6063 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-PN030120-RD040-01 (295mm×1195mm)
Feature

Design for residential / commercial lighting and indoor use

On/Off wall switch

Wattage: 40Watt

Dimming: 100%6500K-100%3000K-20%3000K-20%6500K

Color temperature: CCT 3000K+6500K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 2300~2500lm

Luminous flux efficacy: 58~63lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 4014 LED

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9


Properties

Dimensions: 295mm × 1195mm × 53mmH

Luminaire material: 6063 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-PN060060-SD040-01 (595mm×595mm)
Feature

Design for residential / commercial lighting and indoor use

On/Off wall switch

Wattage: 40Watt

Dimming: 100%6500K-100%3000K-20%3000K-20%6500K

Color temperature: CCT 3000K+6500K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 3200lm

Luminous flux efficacy: 80-85lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 4014 LED

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9


Properties

Dimensions: 295mm × 1195mm × 53mmH

Luminaire material: 6063 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C
