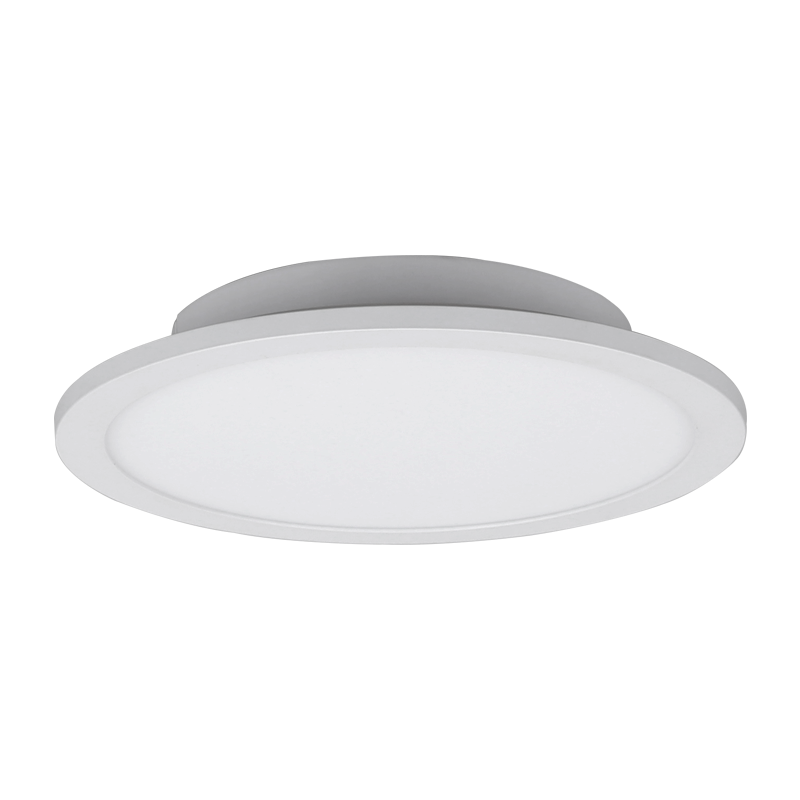

4 Step Dimming LED Panel Light

MK-PN03050T-CD024-01 (Ø300mm)
Feature

Design for residential / commercial lighting and indoor use

On/Off wall switch

Wattage: 24Watt

Dimming: 100%4000K-100%3000K-20%3000K-20%4000K

Color temperature: CCT 3000K+4000K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 2200~2300lm

Luminous flux efficacy: 91~96lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835 LED

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9


Properties

Dimensions: Ø300mm × 50mmH

Luminaire material: ADC12 + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-PN06050T-CD040-01 (Ø600mm)
Feature

Design for residential / commercial lighting and indoor use

On/Off wall switch

Wattage: 40Watt

Dimming: 100%4000K-100%3000K-20%3000K-20%4000K

Color temperature: CCT 3000K+4000K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / suspended mounting


Parameters

Luminous flux: 3400~3600lm

Luminous flux efficacy: 85~90lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835 LED

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9


Properties

Dimensions: Ø600mm × 50mmH

Luminaire material: ADC12 + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C
