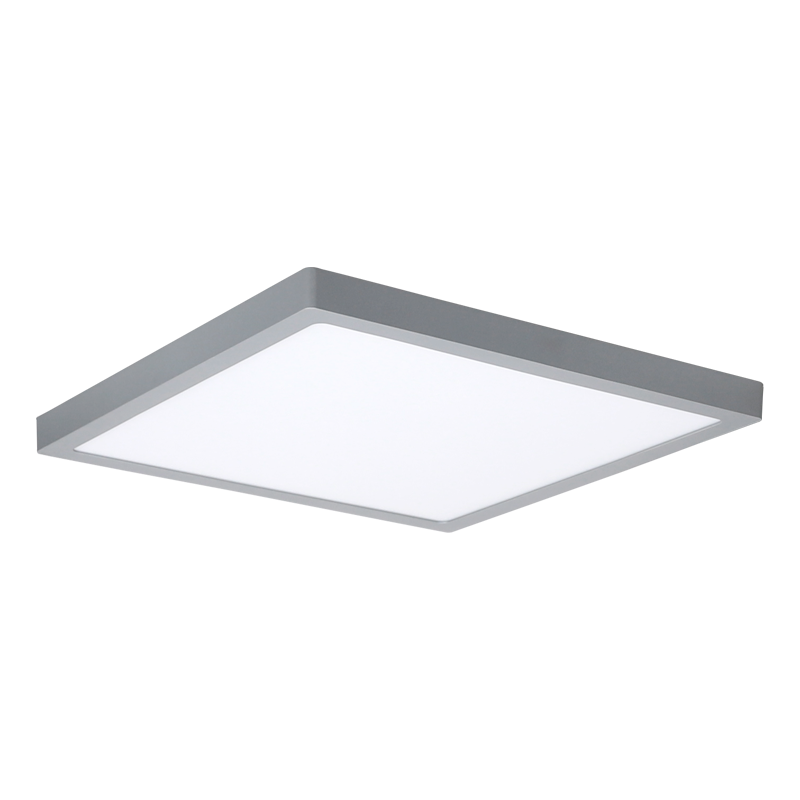

Ultrathin LED Square Panel Light

MK-PN040040-SD024-02 / MK-PN050050-SD030-02 / MK-PN060060-SD036-04 (CCT Version)
Feature
Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 400mm²: 1600lm / 500mm²:2400lm / 600mm²: 3000lm

Luminous flux efficacy: 400mm²:65-70lm/w / 500mm²: 80-85lm/w / 600mm²: 80-85lm/w

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Wattage: 400mm²: 24Watt / 500mm²: 30 Watt / 600mm²: 36Watt

Input voltage: 220-240VAC 50-60Hz

Power factor: 400mm²: >0.7 / 500mm² & 600mm²: >0.9


Properties

Dimensions: 400mm×400mm×28mm / 500mm×500mm×28mm / 600mm×600mm×28mm

Luminaire material: ADC12 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-PN040040-SD024-03 / MK-PN050050-SD030-02 / MK-PN060060-SD040-02 (CCT Triac Dimming Version)
Feature

Design for residential / commercial lighting and indoor use

On/Off wall switch

3-step CCT: 2700K/4000K/6000K

Dimming: Triac dimming


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 400mm²: 1600lm / 500mm²:2400lm / 600mm²: 3000lm

Luminous flux efficacy: 400mm²:65-70lm/w / 500mm²: 80-85lm/w / 600mm²: 80-85lm/w

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Wattage: 400mm²: 24Watt / 500mm²: 30 Watt / 600mm²: 36Watt

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9


Properties

Dimensions: 400mm×400mm×28mm / 500mm×500mm×28mm / 600mm×600mm×28mm

Luminaire material: ADC12 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-PN040040-SD024-04 / MK-PN050050-SD030-01 / MK-PN060060-SD036-03 (RGB+CCT Version)
Feature

Design for residential / commercial lighting and indoor use

Control distance: Max. 12m

Dimming: CCT+2.4G RF remote control

Color temperature: RGB+CCT 2700K+6500K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 400mm²: 1400lm / 500mm²:2200lm / 600mm²: 2800lm

Luminous flux efficacy: 400mm²: 60-65lm/w / 500mm²: 70-75lm/w / 600mm²: 75-80lm/w

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835+3528 (RGB)

Life time: 30000Hours

Wattage: 400mm²: 24Watt / 500mm²: 30 Watt / 600mm²: 36Watt

Input voltage: 220-240VAC 50-60Hz

Power factor: 400mm²: >0.7 / 500mm² & 600mm²: >0.9


Properties

Dimensions: 400mm×400mm×28mm / 500mm×500mm×28mm / 600mm×600mm×28mm

Luminaire material: ADC12 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C
