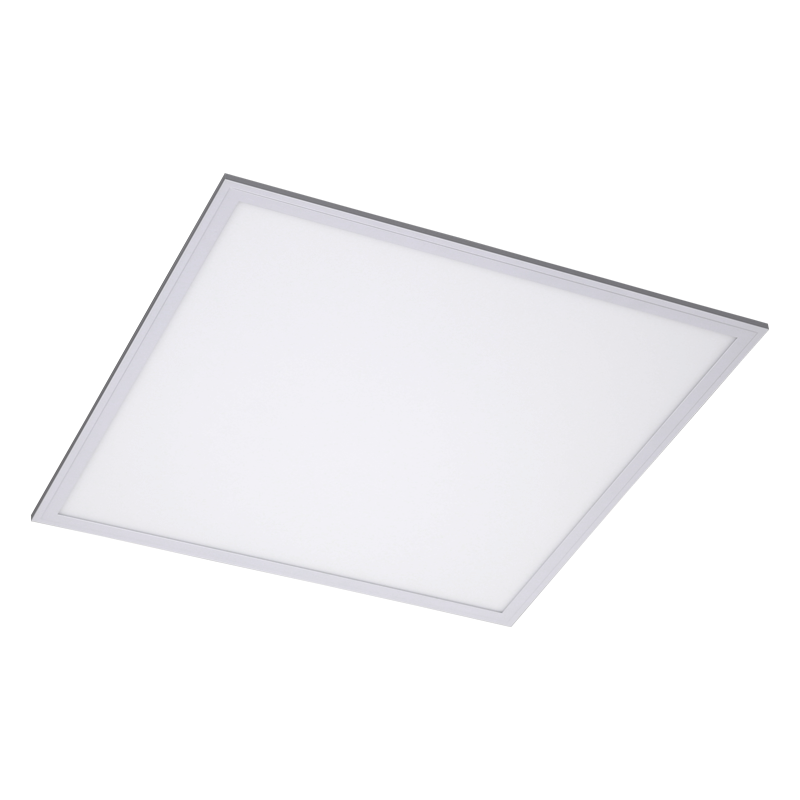

LED Panel Light

MK-B0026-000P (CCT Version)
Feature

Design for residential / commercial lighting and indoor use

Wattage: 36Watt

Dimming: 2.4G RF remote control

Remote to control max. 8pcs together

Color temperature: CCT 2700K+6500K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 3000lm

Luminous flux efficacy: 80-85lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.9


Properties

Dimensions: 595mm × 595mm × 53mmH

Luminaire material: 6063 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-K0282-000 (RGB+CCT Version)
Feature

Design for residential / commercial lighting and indoor use

Wattage: 24Watt

Dimming: 2.4G RF remote control

Remote to control max. 8pcs together

Color temperature: CCT 2700K+6500K


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / Suspended mounting


Parameters

Luminous flux: 1600lm

Luminous flux efficacy: 65~70lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835 LED

Life time: 30000Hours

Input voltage: 220-240VAC 50-60Hz

Power factor: >0.7


Properties

Dimensions: 450mm × 450mm × 53mmH

Luminaire material: 6063 aluminum + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C
