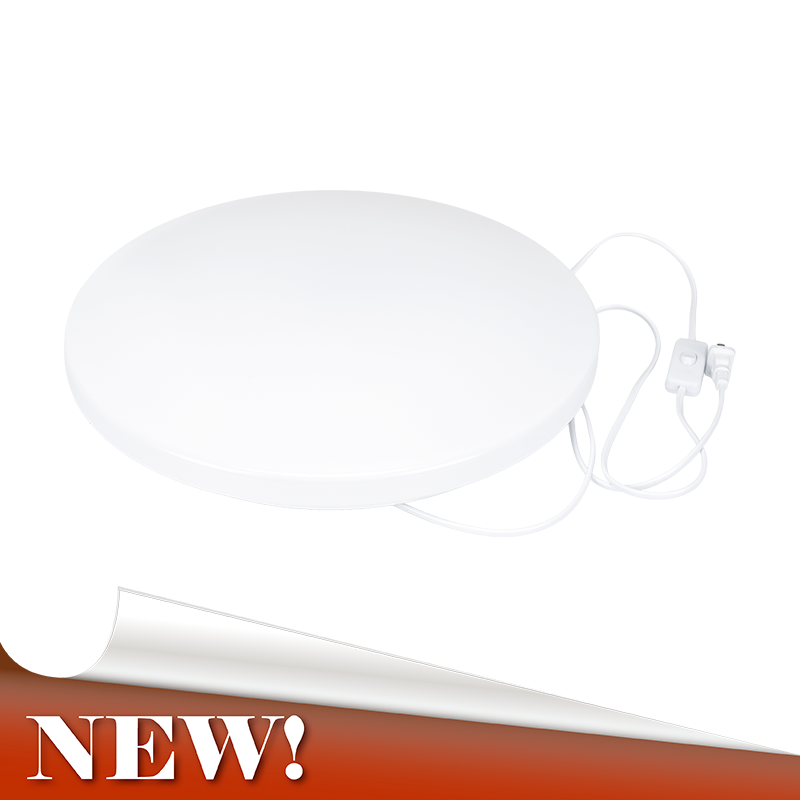

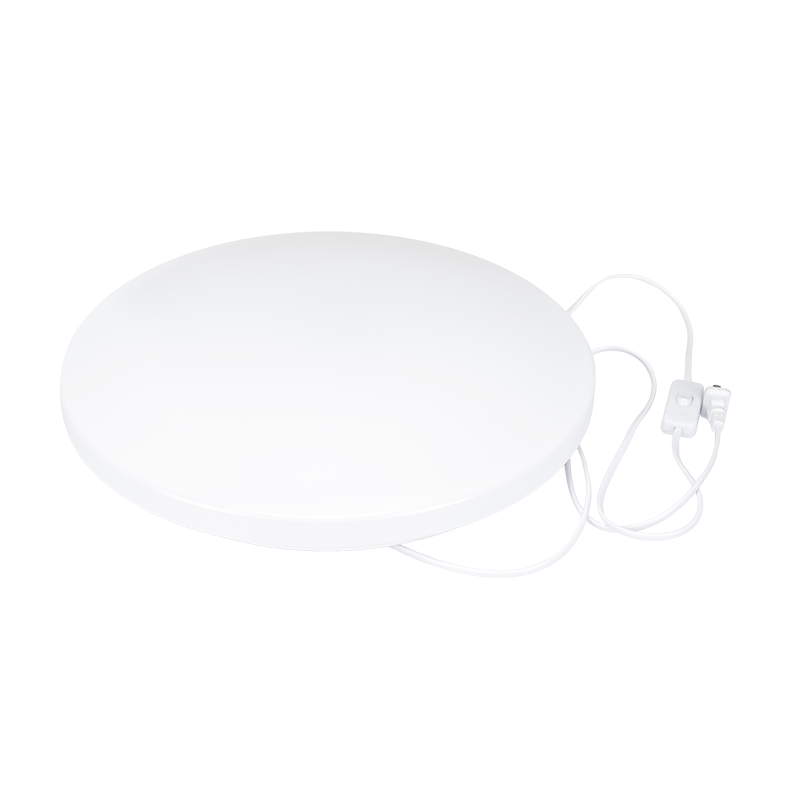

PC Cover LED Ceiling Light

MK-CL03079T-CD016-01(Ø295mm)
Feature

Design for Residential lighting and indoor use

Dimming: CCT + Tuya Wi-Fi voice control

Wattage: 16Watt

Dimensions: Ø295mm×79mmH


Color
Description

Construction: Iron housing + PC lens + PMMA cover

Mounting: Ceiling mount


Parameters

Luminous flux: 2700K: 937.5lm / 5000K: 1040lm

Luminous flux efficacy: 58.6-65lm/W

Color temperature: CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: AC120V 60Hz

Power factor: ≥0.9


Properties

Luminaire material: Iron + PMMA

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-CL03585T-CD020-01(Ø350mm)
Feature

Design for Residential lighting and indoor use

Dimming: CCT + Tuya Wi-Fi voice control

Wattage: 20Watt

Dimensions: Ø350mm×85mmH


Color
Description

Construction: Iron housing + PC lens + PMMA cover

Mounting: Ceiling mount


Parameters

Luminous flux: 2700K: 1200lm / 5000K: 1300lm

Luminous flux efficacy: 60-65lm/W

Color temperature: CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: AC120V 60Hz

Power factor: ≥0.9


Properties

Luminaire material: Iron + PMMA

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-CL04065T-CD024-01(Ø395mm)
Feature

Design for Residential lighting and indoor use

Dimming: CCT + Tuya Wi-Fi voice control

Wattage: 24Watt

Dimensions: Ø395mm×65mmH


Color
Description

Construction: Iron housing + PC lens + PMMA cover

Mounting: Ceiling mount


Parameters

Luminous flux: 2700K: 1300lm / 5000K: 1530lm

Luminous flux efficacy: 55-64lm/W

Color temperature: CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: AC120V 60Hz

Power factor: ≥0.9


Properties

Luminaire material: Iron + PMMA

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C
