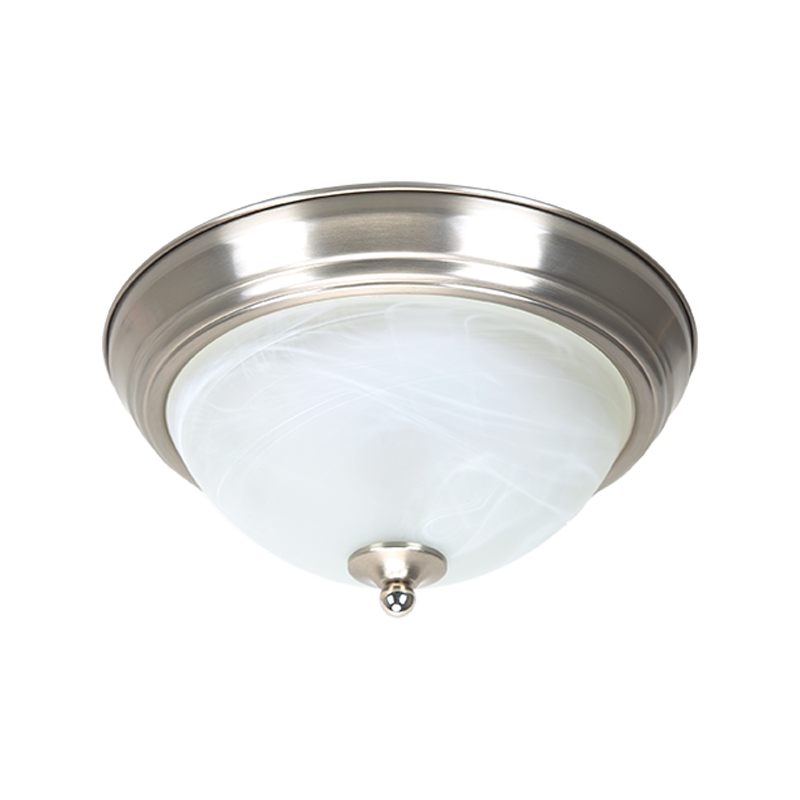

Glass Cover LED Ceiling Light

MK-CL028014-CD016-01(Ø280mm)
Feature

Design for Residential lighting and indoor use

Dimming: CCT + Tuya Wi-Fi voice control

Wattage: 16Watt

Dimensions: Ø295mm×79mmH


Color
Description

Construction: Iron housing + PC lens + Glass cover

Mounting: Ceiling mount


Parameters

Luminous flux: 2700K: 937.5lm / 5000K: 1040lm

Luminous flux efficacy: 58.6-65lm/W

Color temperature: CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: AC120V 60Hz

Power factor: ≥0.9


Properties

Luminaire material: Iron + Glass

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-CL033016-CD020-01(Ø330mm)
Feature

Design for Residential lighting and indoor use

Dimming: CCT + Tuya Wi-Fi voice control

Wattage: 20Watt

Dimensions: Ø330mm×157.8mmH


Color
Description

Construction: Iron housing + PC lens + Glass cover

Mounting: Ceiling mount


Parameters

Luminous flux: 2700K: 1200lm / 5000K: 1300lm

Luminous flux efficacy: 60-65lm/W

Color temperature: CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: AC120V 60Hz

Power factor: ≥0.9


Properties

Luminaire material: Iron + Glass

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C



MK-CL038018-CD024-01(Ø380mm)
Feature

Design for Residential lighting and indoor use

Dimming: CCT + Tuya Wi-Fi voice control

Wattage: 24Watt

Dimensions: Ø380mm×180.7mmH


Color
Description

Construction: Iron housing + PC lens + Glass cover

Mounting: Ceiling mount


Parameters

Luminous flux: 2700K: 1300lm / 5000K: 1530lm

Luminous flux efficacy: 55-64lm/W

Color temperature: CCT (2700K+6500K)

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: AC120V 60Hz

Power factor: ≥0.9


Properties

Luminaire material: Iron + Glass

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C
