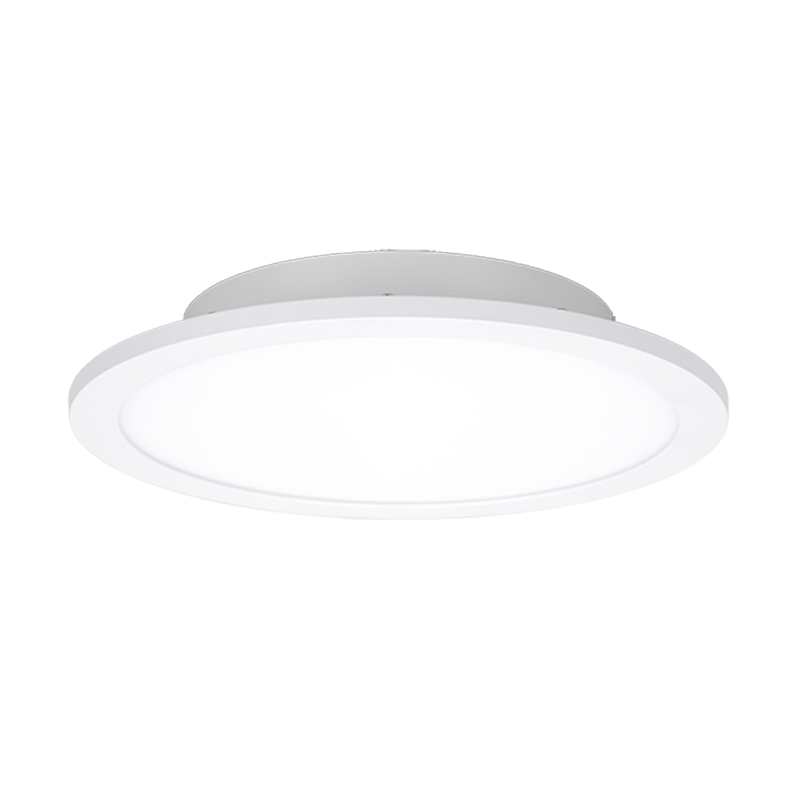

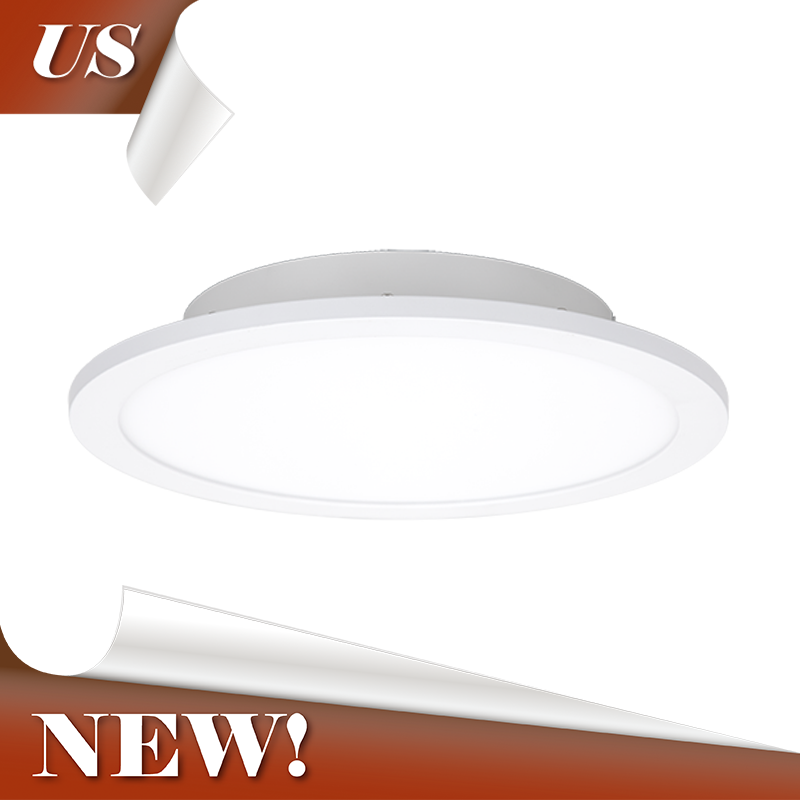

LED Panel Light

P-RMK190121J6-2(Ø300mm)
Feature

Design for residential/commercial lighting and indoor use

Dimming: RGB + CCT + Wi-Fi + 2.4G RF remote control

Wattage: 18Watt

Dimensions: Ø300mm×50mmH


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / suspended mounting


Parameters

Luminous flux: 1100lm~1200lm

Luminous flux efficacy: 61-67lm/W

Color temperature: RGB+CCT 2700K~6500K

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: 120VAC 60Hz

Power factor: >0.5


Properties

Luminaire material: ADC12 + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



P-RMK190121J6-2(Ø450mm)
Feature

Design for residential/commercial lighting and indoor use

Dimming: RGB + CCT + Wi-Fi + 2.4G RF remote control

Wattage: 24Watt

Dimensions: Ø450mm×50mmH


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / suspended mounting

Parameters

Luminous flux: 1700lm~1900lm

Luminous flux efficacy: 71-79lm/W

Color temperature: RGB+CCT 2700K~6500K

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: 120VAC 60Hz

Power factor: >0.5


Properties

Luminaire material: ADC12 + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C



P-RMK190121J6-2(Ø600mm)
Feature

Design for residential/commercial lighting and indoor use

Dimming: RGB + CCT + Wi-Fi + 2.4G RF remote control

Wattage: 36Watt

Dimensions: Ø3005mm×50mmH


Color
Description

Construction: Aluminum housing with good heat dissipation + PS diffuser

Mounting: Ceiling mounting / Wall (surface) mounting / suspended mounting

Parameters

Luminous flux: 2500lm~2800lm

Luminous flux efficacy: 69-78lm/W

Color temperature: RGB+CCT 2700K~6500K

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: 120VAC 60Hz

Power factor: >0.9


Properties

Luminaire material: ADC12 + PS

Electrical safety: Class II

IP rating: IP20

Operation temperature: -20°C ~ +45°C
