LED Backlit Panel Light

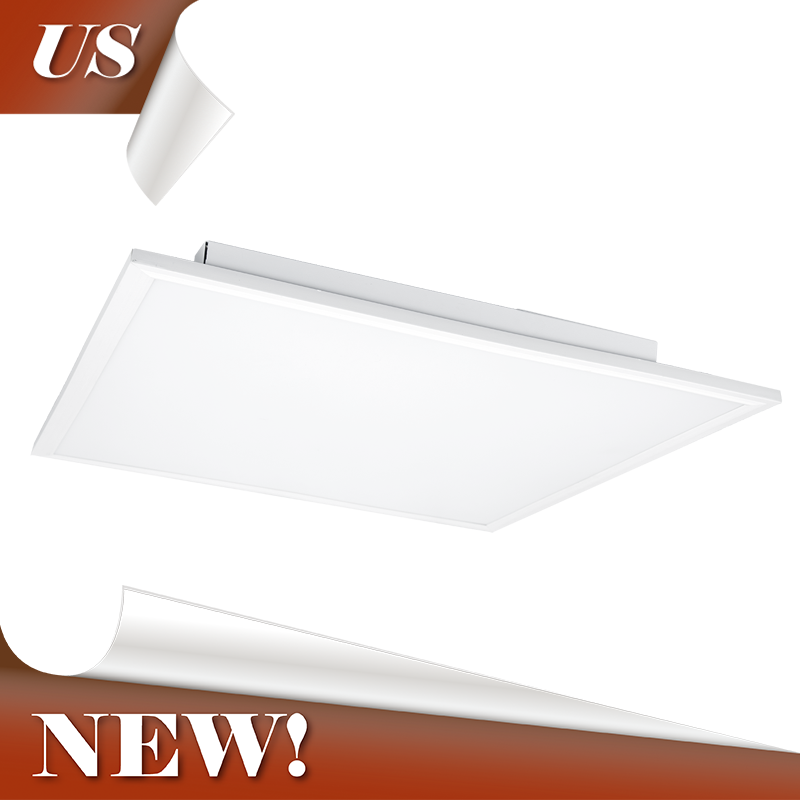

MK-PN060060-RD040-01(2×2ft)
Feature

Design for Residential/Commercial lighting and indoor use

0-10V dimming

Backlit Structure

Wattage: 40Watt

Color temperature: CCT 2700K/4000K/6500K


Color
Description

Construction: Iron + PMMA lens + PS cover

Mounting: Ceiling mount


Parameters

Luminous flux: 3200lm

Luminous flux efficacy: 75~85lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: 100-277VAC 50/60Hz

Power factor: >0.9


Properties

Dimensions: 603mm × 603mm × 38mm

Luminaire material: Iron + PMMA

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C

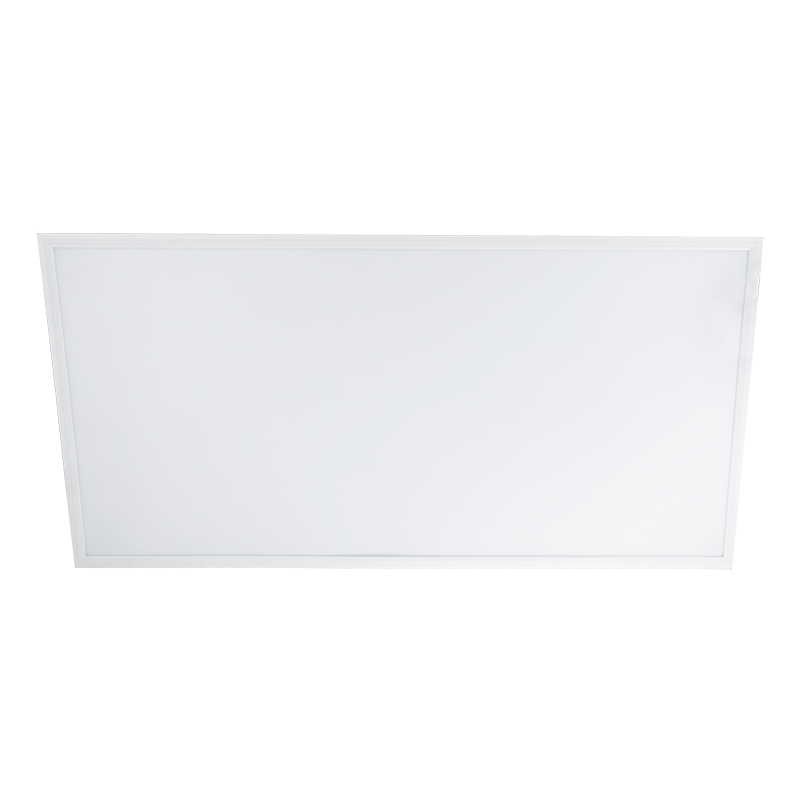

MK-PN060120-RD050-01(2×4ft)
Feature

Design for Residential/Commercial lighting and indoor use

0-10V dimming

Backlit Structure

Wattage: 50Watt

Color temperature: CCT 2700K/4000K/6500K


Color
Description

Construction: Iron + PMMA lens + PS cover

Mounting: Ceiling mount


Parameters

Luminous flux: 4000lm

Luminous flux efficacy: 75~85lm/W

Color rendering index: >80

Beam angle: 120°

LED lamp: 2835

Life time: 30000Hours

Input voltage: 100-277VAC 50/60Hz

Power factor: >0.9


Properties

Dimensions: 1213mm × 603mm × 38mm

Luminaire material: Iron+PMMA

Electrical safety: Class I

IP rating: IP20

Operation temperature: -20°C ~ +45°C
